Märklin 39761 – Class 01.10 Older Design Steam Locomotive · DB – H0 1:87
At a glance
- Operating number01 1075
- Digital equipmentmfx+
- Model / set length277 mm
Märklin 39761: German Federal Railroad (DB) class 01.10 express steam locomotive with an older boiler design and type 2´3 T38 coal tender.
- Scale
- H0
- Year
- 2026
- Reference
- 39761

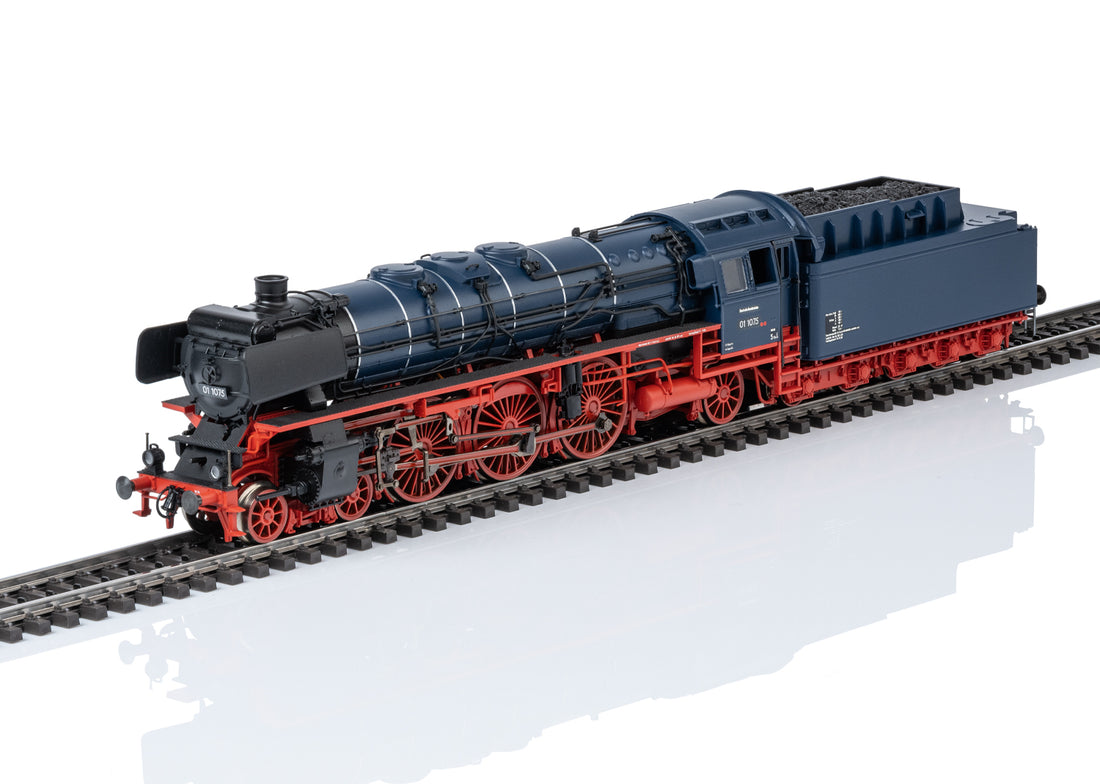

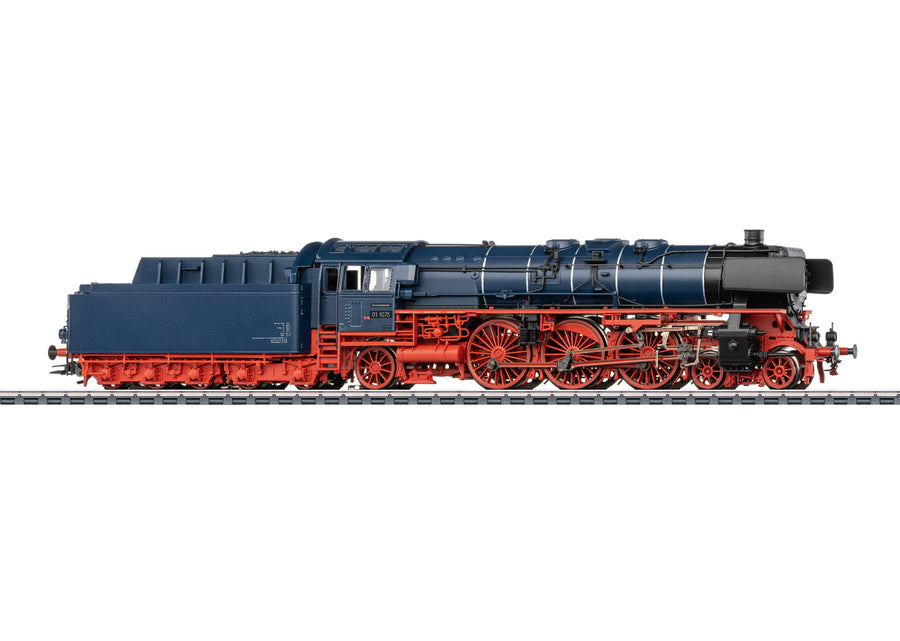

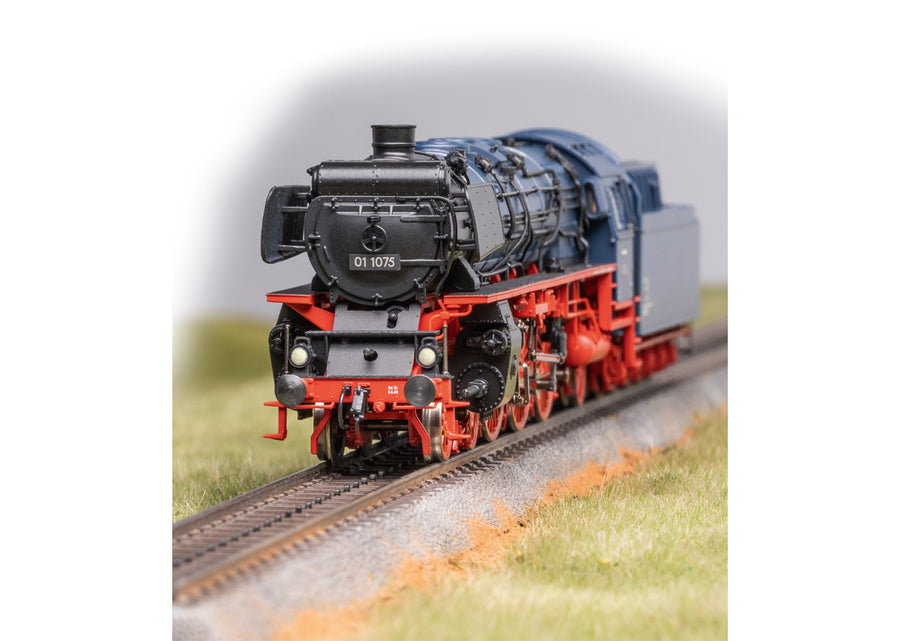

Manufacturer photo
Märklin
- Exclusive MHI special model, one-time series
- Locomotive frame and body predominantly metal
- mfx+ digital decoder
- DCC decoder
- Factory-fitted sound electronics
- Two headlights changing with travel direction
- Märklin close couplers in standard pockets with guide mechanism
- Era III
- Buffer capacitor
- Warning: adults only
Pre-order
Image gallery
Model images and additional photos from linked listings. Condition and included items apply only to the specific listing.
Technical data
- Manufacturer
- Märklin
- Reference
- 39761
- Model size
- H0
- Scale ratio
- 1:87
- Track gauge
- 16,5 mm
- Era
- III
- Railway / owner
- DB
- Release year
- 2026
Equipment and technical details
Identification
- Manufacturer / reference
- Märklin 39761
- Prototype condition
- 1950
- Operating number
- 01 1075
- EAN
- 4001883397610
Model and dimensions
- Gauge / scale
- H0 / 1:87
- Railway company
- DB
- Era
- III
- Model / set length
- 277 mm
- Minimum radius
- 360 mm
Equipment
- Powered axles
- 3
- Digital equipment
- mfx+
- Sound functions
- Included
- LED lighting
- Included
- Cab lighting
- Included
- Energy reserve / buffer capacitor
- Included
Model and factory equipment
The loco has an mfx+ digital decoder and extensive sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. Three axles on the model are powered. Traction tires are fitted. The locomotive and tender are made mostly of metal. The model has a factory-fitted smoke generator with speed-dependent, dynamic smoke exhaust. Dual headlights change over with the direction of travel, work conventionally, and can be controlled digitally. The cab lights, firebox flickering, and running gear lights can be controlled separately in digital operation. Maintenance-free warm-white and red LEDs are used for the lighting. A buffer capacitor is fitted. There is a close coupling with a guide mechanism between the loco and tender. The tender has a close coupling with a guide mechanism and an NEM pocket. The buffer heights on the loco and tender conform to NEM specifications. The minimum radius for operation is 360 mm / 14-3/16". Protective piston sleeves and brake hoses as well as figures of a locomotive engineer and a fireman are included. Length over the buffers 27.7 cm / 10-7/8".

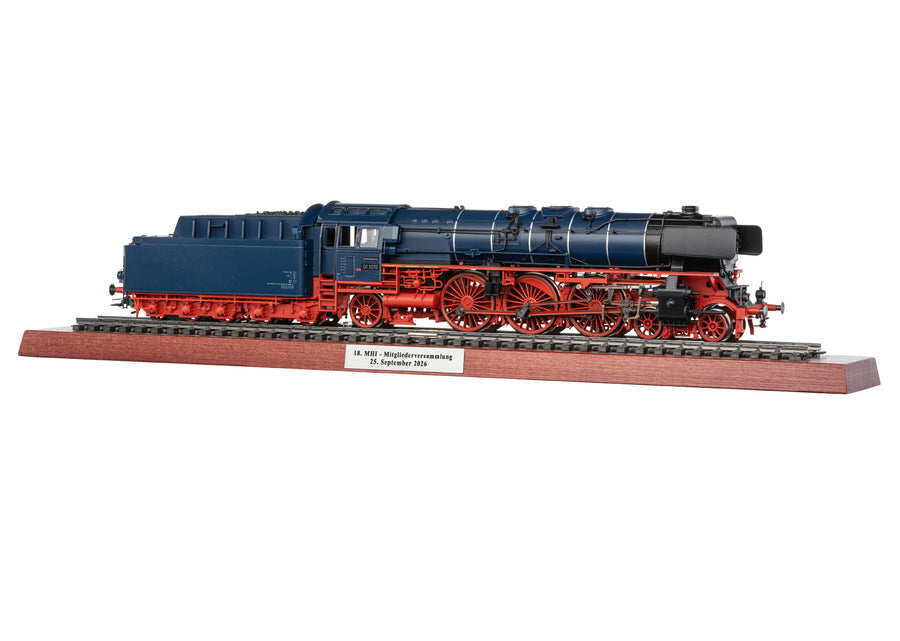

Special model for the 18th Dealer Initiative Members’ Meeting 2026.With presentation base and track. Elegant steel-blue paint scheme with silver boiler bands. Especially intricate metal construction. Numerous separately applied details. Factory-installed smoke generator and speed-dependent, dynamic smoke exhaust. The cab lights, firebox flickering, and running gear lights can be controlled digitally. World of Operation mfx+ decoder with extensive light and sound functions. The buffer height conforms to NEM specifications. A buffer capacitor to bridge short unpowered sections of track is fitted.
One-time special version for the 18th Dealer Initiative Members’ Meeting on September 25, 2026.
Prototype
German Federal Railroad (DB) class 01.10 express steam locomotive with an older boiler design and type 2´3 T38 coal tender. Steel-blue basic paint scheme with black smokebox and silver boiler bands, based on the “F-Zug” network of express trains. Version without streamlined fairing. With striking transverse surface feed-water heater on the smokebox. Dual headlights. Witte smoke deflectors and an inductive magnet on one side. Loco road number 01 1075. The loco looks as it did around 1950.
Functions and controllers
1Function group 15 functions
Listed by the manufacturer for:
- Control Unit
- Mobile Station
- Mobile Station 2
- Central Station 1/2
- Central Station 3/2* / Mobile Station 2**
- Headlights
- Smoke generator
- Steam locomotive running sounds
- Locomotive whistle
- Cab lighting
2Function group 24 functions
Listed by the manufacturer for:
- Mobile Station
- Mobile Station 2
- Central Station 1/2
- Central Station 3/2* / Mobile Station 2**
Not listed in this table for: Control Unit
- Running gear lighting
- Shovelling coal and firebox
- Switching whistle
- Direct control
3Function group 37 functions
Listed by the manufacturer for:
- Mobile Station 2
- Central Station 1/2
- Central Station 3/2* / Mobile Station 2**
Not listed in this table for: Control Unit / Mobile Station
- Brake squeal off
- Release steam
- Shovelling coal
- Shaker grate
- Air pump
- Conductor's whistle
- Water pump
4Function group 412 functions
Listed by the manufacturer for:
- Central Station 3/2* / Mobile Station 2**
Not listed in this table for: Control Unit / Mobile Station / Mobile Station 2 / Central Station 1/2
- Injector
- Replenish water
- Replenish coal
- Replenish sand
- Sanding
- Coupling sound
- Rail joints
- Safety valve
- Double-A switching lights
- Switching speed and switching lights
- Generator sound
- Special sound function
Manufacturer source: Märklin 39761
Model knowledge
Model history
Prototype history
Edition and production
Manuals and downloads
Available manuals and spare-parts lists for this model. PDFs open in a new tab and can be saved there.
Manufacturer manual · 39761
Language: Multilingual (including DE, ES, EN)
Source: Märklin / Trix · documento oficial · Checked on: 2026-10-27
Open PDF: Manufacturer manual · 39761 — opens in a new tab ↗Digital functions and controllers · Märklin 39761
Language: ES / DE / EN / FR / IT / NL
Source: Manufacturer data, prepared by Iberplace · Checked on: 2026-10-27
Open PDF: Digital functions and controllers · Märklin 39761 — opens in a new tab ↗Related articles
